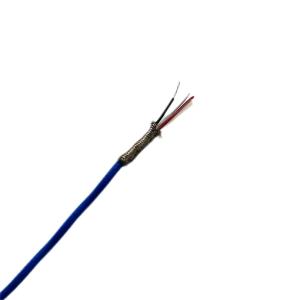

3*24AWG Shielded Rtd Wire

Name: 324AWG Shielded Rtd Wire
Brand: Dingzun
Price: 1 USD

Wholesale 3*24AWG Shielded Rtd Wire from china suppliers

Brand Name : Dingzun

Model Number : Z-36

Certification : UL,CE,ISO9001

Place of Origin : China

MOQ : 500m

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 3000M/DAY

Delivery Time : 15DAYS

Packaging Details : 250M/ROLL PACKED IN CARTON

Conductor Material : Tinned copper

Stranded : stranded

Construction : 3*7/0.20

Insulation : FEP

shield : tinned copper braid

armor : no

Temperature : 200℃

Voltage : 300V

Application : TEMP MEASURING

Contact Now

Z-36

Description: 3*24AWG SHIELDED RTD WIRE

Details
Conductor: tinned copper
Construction: 7/0.20
Cores: 3
Insulation: FEP
SHIELD: tinned copper braid
Jacket: FEP
O.D. 3mm
Rated Temp: 200℃
Rated Voltage: 300V
Type: RTD Extension Wire

3CORE is a normal RTD extension wire

Q - What does RTD stand for?
A-RTD stands for resistance Temperature Detector, but is also called PRT(Platinum Resistance Thermometer)
Q - What is RTD?
A - Temperature sensor containing a resistance (usually 100 or 1000 ohms). Resistance varies with temperature; This can then be correlated to provide a temperature reading. RTD is considered one of the most accurate temperature sensors. In addition to providing very good accuracy, they have excellent stability, repeatability, and high immunity to electrical noise. This means that RTD sensors are well suited for applications in process and industrial automation environments, especially motors, generators and other high voltage equipment.
